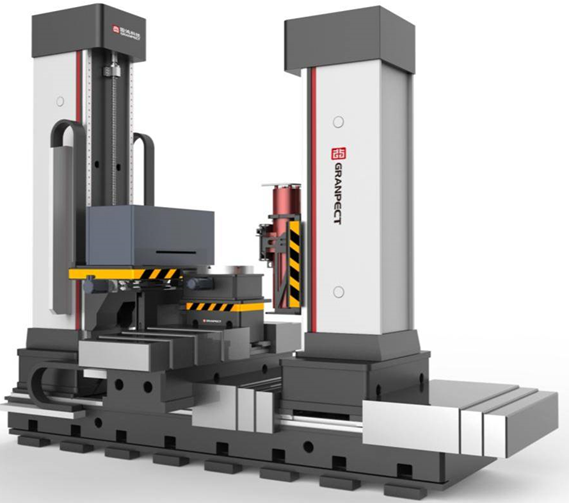

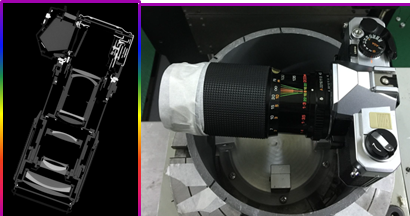

The industrial CT non-destructive testing system can give tomographic images of the tested object, reproduce the internal structure, density distribution, defect location, etc. of the object, and can quantitatively detect the internal structure and defects of the tested object. Industrial CT can be used for quantitative detection of parts and overall internal defects, assembly correctness inspection, and mechanical inversion engineering applications. It has been widely used in aerospace, aviation, railways, ships, electronics, machinery and many other fields.
This series of industrial CT non-destructive inspection systems can be equipped with X-ray machines of different energy, and optional area array detectors or linear array detectors. The combination of multi-ray sources and multi-detectors can be used to meet different detection needs.
System composition
Ray source: X-ray machine detector, linear array detector, flat panel detector, multi-degree-of-freedom high-precision mechanical device and electrical control, system control and image processing computer system control, data acquisition, image reconstruction, image processing and other software modules, Safety interlock and warning
